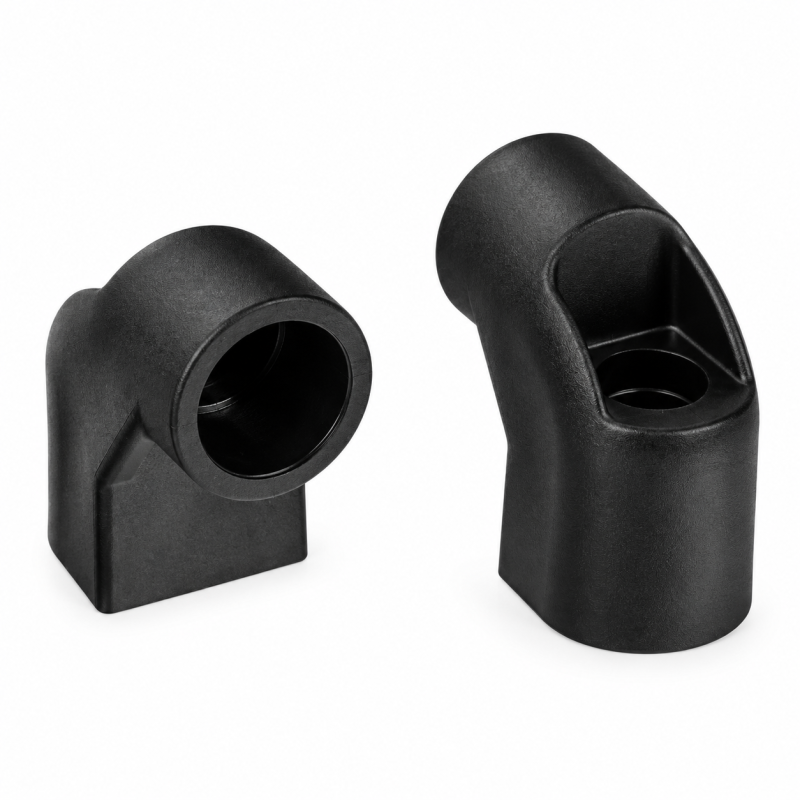

    End Piece for Tubular Handles 20 mm Black
    End Piece for Tubular Handles 20 mm handle end bracket EMFA GmbH
    End Piece for Tubular Handles 20 mm handle end bracket EMFA GmbH
    End Piece for Tubular Handles 20 mm handle end bracket EMFA GmbH
    End Piece for Tubular Handles 20 mm handle end bracket EMFA GmbH

    End Piece for Tubular Handles 20 mm Black 1 piece

    3.22 €
    Tax Excluded

    3.87 €
    Tax Included
    3.22 €/piece
    In stock
    Number :
    Quantity :
    Item number : ER2_20SW_F Copy Copy
    Kostenloser Versand ab 150 €
    Versandfertig: 24 h
    Hersteller EMFA GmbH – Versand aus Deutschland

    End Piece for Tubular Handles, tube diameter 20 mm, screw hole 8,5 mm, in Black, 1 pcs.

    End piece with a socket for the handle tube and a screw hole

    The handle tube is inserted into the socket of the end piece. The end piece is fixed with a socket head screw through the through hole.

    • socket for a tube with a diameter of 20 mm
    • counterbore with a diameter of 14.3 mm for the screw head

    End piece for tubular handles made of polyamide

    The end piece is made of polyamide.

    • width 48 mm and depth 30 mm
    • height 54 mm

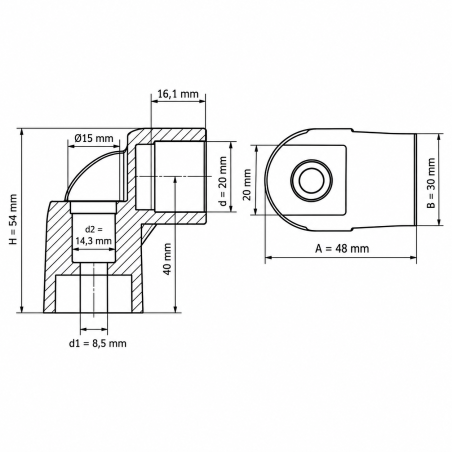

    Technical data

    You will find all technical data of this product in the following overview.

    FeatureValue
    Product nameEnd Piece for Tubular Handles
    Tube diameter d [mm]20
    Screw hole d1 [mm]8,5
    Counterbore for screw head d2 [mm]14,3
    Width A [mm]48
    Depth B [mm]30
    Height H [mm]54
    ColorBlack
    MaterialPolyamide
    BrandEMFA GmbH

    Installation

    The end piece is fitted onto the end of the 20 mm handle tube and fixed with a socket head screw through the 8.5 mm through hole.

    Frequently asked questions about the end piece for tubular handles

    Which tube does the end piece for tubular handles 20 mm fit?

    The size refers to the diameter of the handle tube that is inserted into the socket of the end piece. The through hole for the screw measures 8.5 mm and the counterbore for the screw head 14.3 mm.

    What material is the end piece made of?

    The end piece is made of polyamide. It is 48 mm wide, 30 mm deep and 54 mm high.

    How is the end piece fixed?

    The end piece is fixed with a socket head screw that passes through the through hole; the screw head sits in the counterbore.
