Bushing for Lift Spring 18,8x19x9,5 mm Black 1 piece
1.05 €
Tax Excluded
1.26 €
Tax Included
1.05 €/piece
In stock

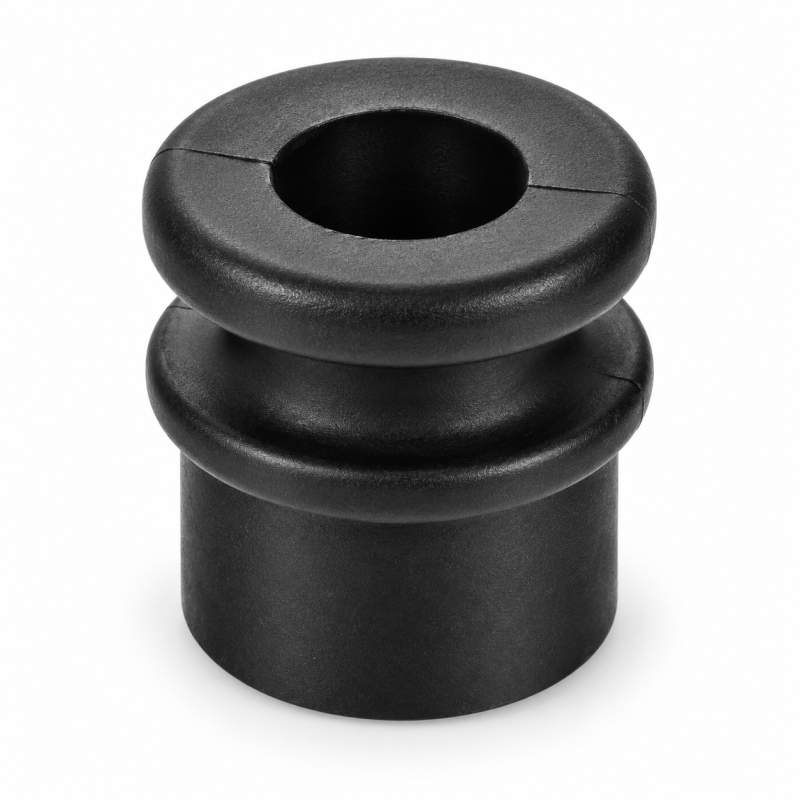

Bushing for Lift Spring with dimensions 18,8x19x9,5 mm, in Black, 1 pcs.
Bushing for springs in sofa bed lift mechanisms
The bushing is used in lift mechanisms of sofa beds and divans. According to the manufacturer, it ensures quiet operation of the mechanism when the sofa is opened.
- stable connection of rivet and flat bar of the mechanism
- for mechanisms of sofas and divans
Polyamide PA66 bushing with collar
The bushing is made of polyamide PA66. According to the manufacturer, parts fitted with these bushings can be cured in powder coating plants.
- collar at the top and circumferential groove
- bore with diameter d as per the table

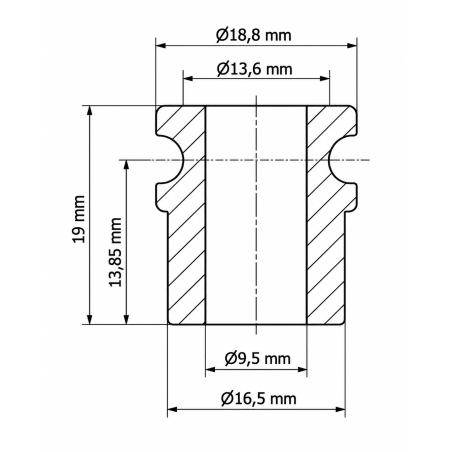

Technical data
You will find all technical data of this product in the following overview.
| Feature | Value |
|---|---|
| Product name | Bushing for Lift Spring |
| Outer diameter D [mm] | 18,8 |
| Height H [mm] | 19 |
| Bore diameter d [mm] | 9,5 |
| Color | Black |
| Material | Polyamide PA66 |
| Brand | EMFA GmbH |
Installation
The bushing sits in the riveted joint on the flat bar of the lift mechanism, with the rivet passing through its bore.
Frequently asked questions about the bushing for lift spring
What does the size 18,8x19x9,5 mm of the bushing mean?
It gives the outer diameter D, the height H and the bore diameter d in millimetres, in this order. The values are also listed in the dimension table.
What is the bushing made of?
Polyamide PA66; according to the manufacturer, parts fitted with these bushings can be cured in powder coating plants.
Where is the bushing for lift spring used?
In lift mechanisms of sofa beds and divans, where it ensures quiet operation when opening and a stable connection of rivet and flat bar.
- Size
- 18,8x19x9,5 mm
- Color
- Black (RAL 9005)
   |
