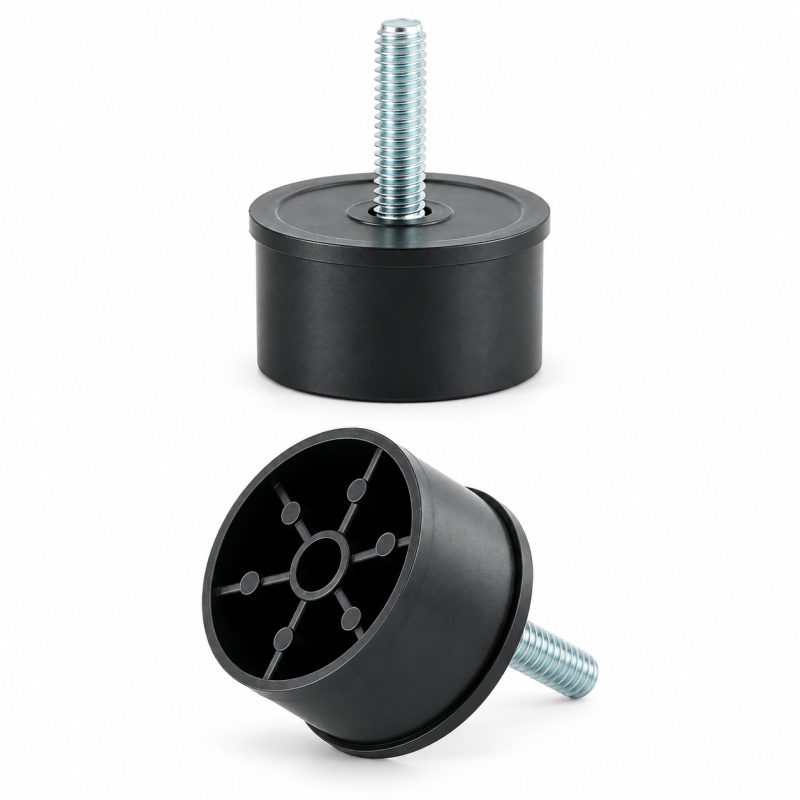

Drive-in insert with threaded stud for round tube 60 mm M8x23 Black 1 piece
1.21 €
Tax Excluded
1.45 €
Tax Included
1.21 €/piece
In stock
Drive-in insert with threaded stud for round tube with a diameter of 60 mm and a wall thickness of 1,5 mm, M8 thread, in Black, 1 pcs.
Drive-in insert with threaded stud for fastening without welding
The insert is driven into the end of the round tube, and the M8 stud protruding above the collar takes a part with an internal thread. It replaces the metal disc welded into the tube of a furniture leg.
- for furniture, railings, handrails and shelving
- collar covers the tube edge
Drive-in insert made of polypropylene with a galvanised stud
The polypropylene body is matched to the inner diameter of the tube.
- stud made of galvanised steel
- radial ribs on the underside

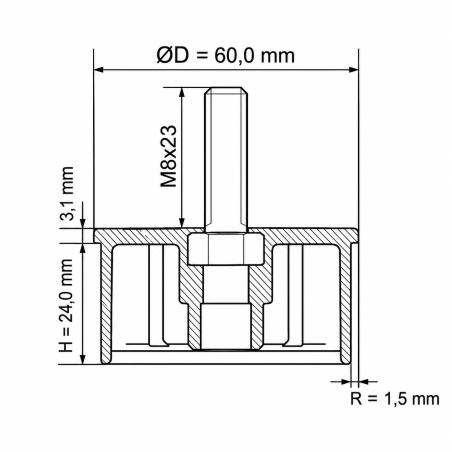

Technical data
You will find all technical data of this product in the following overview.
| Feature | Value |
|---|---|
| Product name | Drive-in insert with threaded stud for round tube |
| Tube outer diameter D [mm] | 60 |
| Tube wall thickness R [mm] | 1,5 |
| Insertion depth H [mm] | 24 |
| Collar height [mm] | 3,1 |
| Threaded stud | M8x23 |
| Color | Black |
| Material | Polypropylene (body), galvanised steel (stud) |
| Brand | EMFA GmbH |
Fitted by driving into the tube end
The insert is driven in with a rubber mallet or a setting tool until the collar rests on the tube edge. A part with an M8 internal thread is then screwed onto the stud.
- insert matched to tube diameter and wall thickness
- even driving to the correct depth
Frequently asked questions about the drive-in insert with threaded stud for round tube
Which tube does the 60 mm drive-in insert fit?
This is the outer diameter of the tube; the wall thickness and stud length are given in the table.
What is the drive-in insert with threaded stud made of?
The body is made of polypropylene and the M8 threaded stud of galvanised steel.
How is the drive-in insert fitted?
It is driven into the tube end with a rubber mallet or a setting tool until the collar rests on the edge.
- Size
- 60 mm
- Colour
- Black (RAL 9005)
- Thread
- M8
- Tube wall thickness
- 1,5 mm
   |
file_download Download |
| EN | DE | FR | IT | ES | SE | NL | |
| Manufacturer: EMFA GmbH Email: info@emfa-kunststoff.de Address: Im Technologiepark 1 Frankfurt (Oder), Brandenburg 15236 Deutschland Phone: +491727549284 |
Responsible Person: EMFA GmbH Email: info@emfa-kunststoff.de Address: Im Technologiepark 1 Frankfurt (Oder), Brandenburg 15236 Deutschland Phone: +491727549284 |
| BRAND: EMFA | |
| [EN] warning WARNING Not suitable for children under 3 years. [DE] warning WARNUNG Nicht geeignet für Kinder unter 3 Jahren. [FR] warning AVERTISSEMENT! Ne convient pas aux enfants de moins de 3 ans. [IT] warning AVVERTENZA Non adatto a bambini di età inferiore ai 3 anni. [ES] warning ADVERTENCIA! No apto para niños menores de 3 años. [SE] warning VARNING! Ej lämplig för barn under 3 år. [NL] warning WAARSCHUWING! Niet geschikt voor kinderen onder de 3 jaar |
|
6 other products in the same category:
The drive-in insert with threaded stud for round tube with a diameter of 60 mm is used to screw parts with an M8 internal thread onto the tube end. The polypropylene body is driven into the tube, and the galvanised steel stud replaces a welded metal disc. It is used in furniture, railings and shelving.
